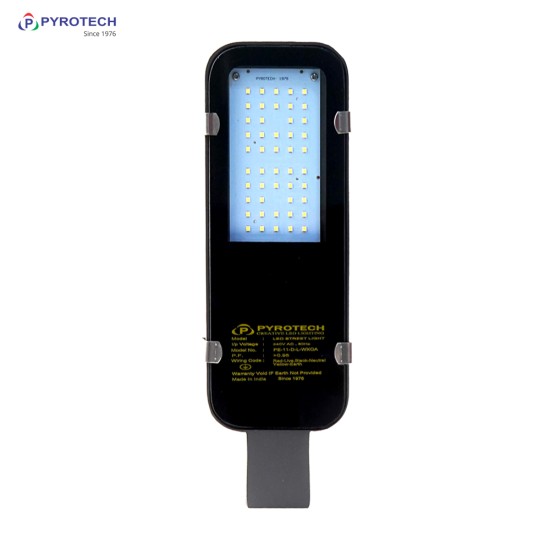

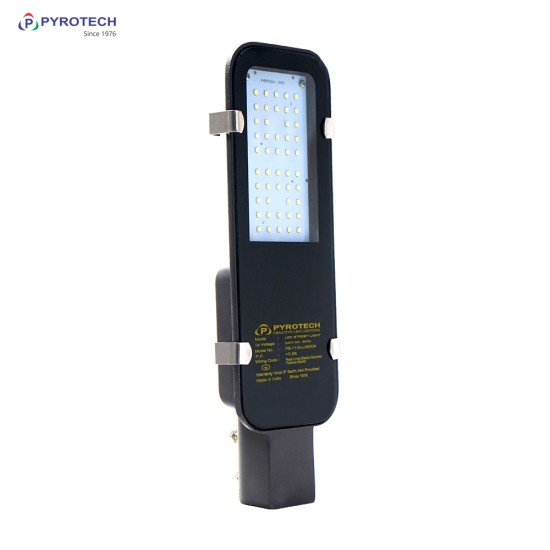

10-30 W LED Street Light (Glass Model)
10-30 W LED Street Light (Glass Model)
Features
- High tensile zinc passivated hardware.
- Opticapattern designed for optimum efficiency.
- Light angle can be made application specific.
- Constant current LED driver for optimum performance.
- No UV, IR radiation & glare effect.
- Extremely cost effective operation.
- Green & environment protection.
- Direct lighting
$0.00
Ex Tax: $0.00
- Stock: In Stock
- Model: PE-11-D-L-WXOA
Technical Specifications
| Product Details | |
| Model Type | Glass Model |
| THD | < 10% |
| Driver Efficiency | 0.85 |
| Operating Temperature (°C) | -20 to 60 |
| Working Humidity (RH) | 5% - 95% |
| Surge Protection (Internal/External) | 4Kv / 10Kv (Optional) |
| LED Luminous Flux (Lumen) | 1300 - 3900 |
| LED Luminous Efficacy (lm/w) | > 130 |
| Correlated Color Temperature (K) | 2700 - 6500 |
| Color Rendering Index | > 70 |
| Beam Angle | 120° |
| Enclosure | Die - Cast Aluminum |
| Ingress Protection | IP - 65 |
| LED Life (Hrs.) | 50000 |
| Dimension L x W x H (mm) Tolerance ± 5 | 310 x 106 x 66 |
| Mounting Details | |
| Mounting Pipe Dia ID (mm) | 43 |
| Power Details | |
| Input Voltage | 140 - 270V AC |
| Power Consumption | 10 - 30 Watt |
| Power Factor | > 0.9 |
| Frequency Range (Hz) | 50 +/- 10% |
